SCYLLA XL Suspended Rope Tunnel
SCYLLA XL Suspended Rope Tunnel : rope play modules for playgrounds, marque Light In Fitness, tarif sur devis. Delivery and installation priced on quotation across Europe.
Price on request
Price on request — project quotation within 24 business hours.
Wide-span suspended rope tunnel of 0.8 to 1.2 m diameter across a 4.24 m span.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-SCYLLAXL-024. Layout study, delivery, installation and after sales.
Description

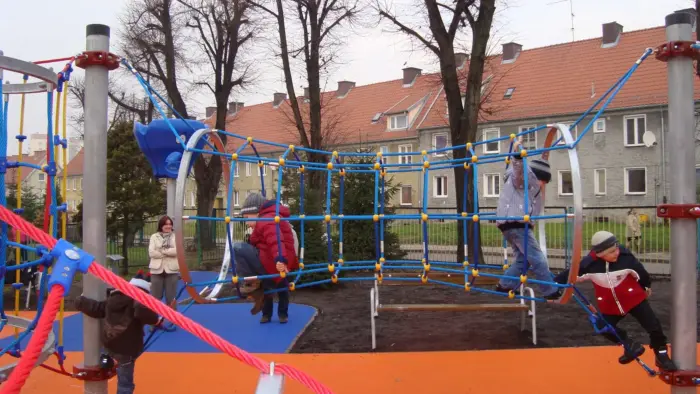

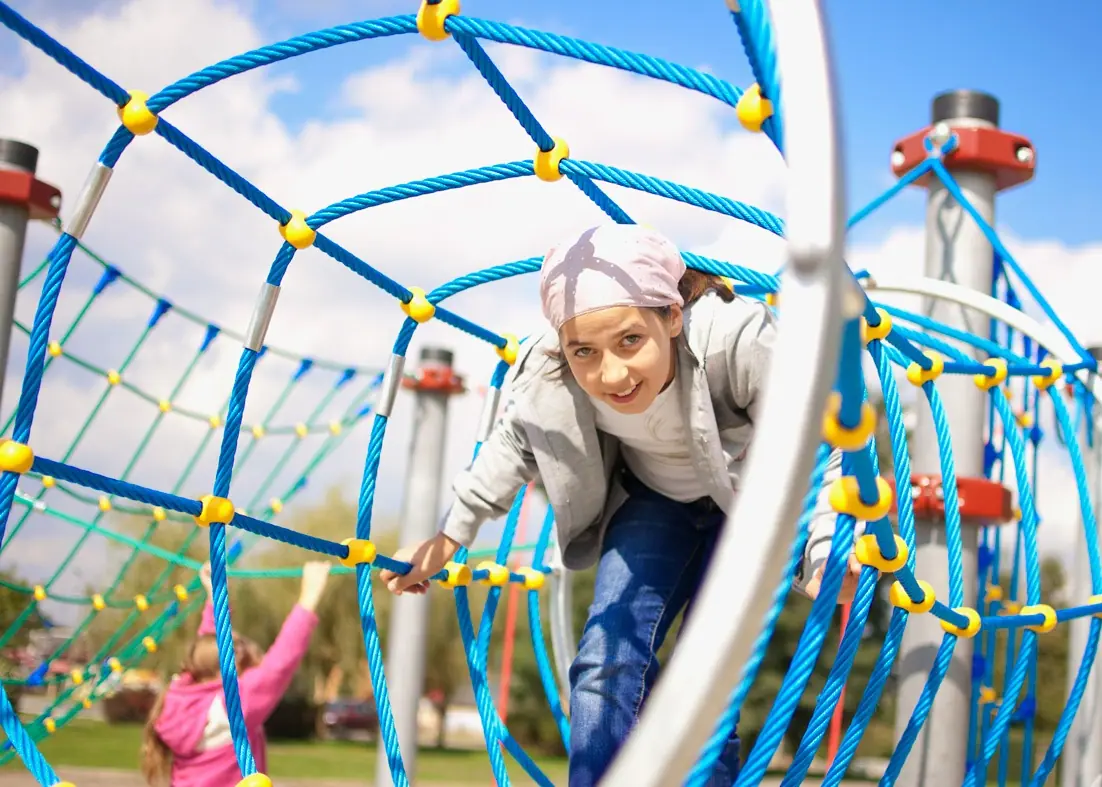

SCYLLA XL stretches the suspended rope tunnel across a 4.24 m post spacing, keeping the 0.8 m to 1.2 m diameter and the two hot-dip galvanised shaping rings. The longer passage turns a quick crawl into a proper journey.
Length changes the experience
At 3.0 m a tunnel is a feature. At 4.24 m it becomes a place: children stop inside it, meet in the middle, block it and negotiate their way past each other. That social use is the reason to specify the longer version where the site has the room, and it is also why the tunnel absorbs more children per minute than its narrow footprint suggests.
- Rope tunnel, 0.8 m to 1.2 m in diameter
- Two hot-dip galvanised steel shaping rings
- Fixing clamps protected with chlorinated rubber paint
- Aluminium, stainless steel and plastic connectors
Technical specification
| Reference | LIF-SCYLLAXL-024 |
|---|---|
| Dimensions | 4.6 x 1.2 x 3.0 m (L x W x H) |
| Age range | 5 to 14 years |
| Free height of fall | 2.85 m |
| Safety area | 5.3 x 9.6 m minimum |
| Foundation depth | 1.0 m, reinforced concrete footings |
| Tunnel diameter | 0.8 m to 1.2 m |
| Shaping rings | Two, hot-dip galvanised steel |
| Post spacing | 4.24 m |
| Frame | Hot-dip galvanised steel posts, 168.3 mm diameter |
| Ropes | Braided and bonded polyamide, 18 mm, six-strand galvanised steel core |
| Standard | EN 1176-1:2017, certificate issued by an independent certification body |
| Price | On request — project quotation within 24 business hours |
Supervision over a longer passage
The open rope construction keeps occupants visible from outside along the whole length, which is the practical difference between a rope tunnel and a closed plastic tube in a supervised setting such as a school or a holiday park.
Maintenance
Wear concentrates where knees and elbows bear on the rope, along the base of the tunnel. Sheath condition there, ring fixings and overall tension are recorded under the routine, operational and annual regime required by EN 1176.
Weathering and service life
Rope tunnels take more direct contact than any other module in the collection, because users bear on the rope with their whole body weight. The galvanised steel core inside the polyamide rope is what makes that acceptable over many seasons: the sheath wears, the core does not, and replacement is driven by inspection findings rather than a fixed date.
Frequently asked questions
How many children fit inside at once?
Several over 4.24 m, which is part of its appeal. Supervisors in school settings usually limit numbers so that the passage does not block.
Does the tunnel sag in the middle?
The rings and the rope tension hold the section. Tension is set at installation and verified at the periodic inspection.
Can it be installed as a stand-alone module?
Yes. It works alone as well as in a trail, and its 5.3 x 9.6 m safety area is the same width as the other two-post modules.
Request a quotation with your available length, or browse the rope play modules.
