Rope play configuration no. 43 – dome and rope balance structure
Rope play configuration no. 43 – dome and rope balance structure : combined rope play structures for playgrounds, marque Light In Fitness, tarif sur devis. Configuration complexe de jeux en corde n°43Cette configuration réunit trois éléments intégrés : un dôme de jeu en corde, une passerelle de transition et une structure d'équilibre en corde. Delivery and installation priced on quotation across Europe.
Price on request
Price on request — project quotation within 24 business hours.
Three-element layout on 17.2 x 9.1 m: a rope play dome, a transition walkway and a dedicated rope balance structure.
This item is supplied on quotation: configuration, delivery and installation are priced against your project.
Request a quotation +33 6 20 72 66 96
Answer within 24 to 72 business hours, quote reference LIF-KZ43-1143. Layout study, delivery, installation and after sales.
Description

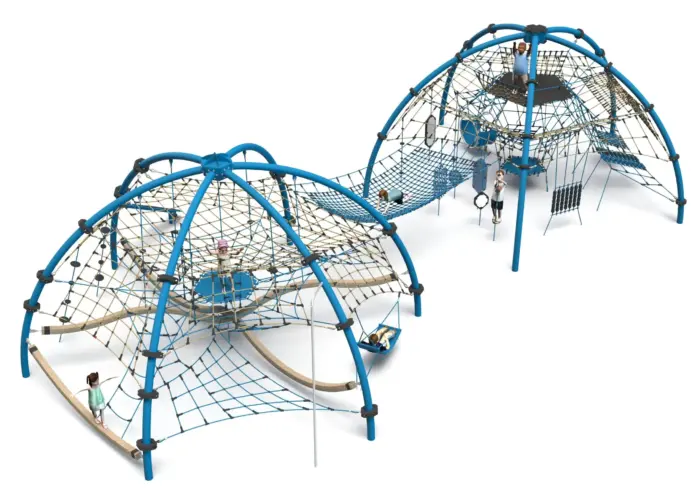

Rope play configuration no. 43 is a three-element layout that puts balance at the centre of the design: a rope play dome, a transition walkway and a dedicated rope balance structure, across 17.2 x 9.1 m.
Balance as the main event
Most playgrounds treat balance as something children do on the way to somewhere else — a wobbly bridge between two platforms. Here it is a structure in its own right. Sustained work on an unstable rope surface develops the ankle, core and postural control that a fixed deck never asks for, and it is the play value most often missing from equipment that emphasises climbing and sliding.
- Rope play dome
- Transition walkway
- Rope balance structure
Colour choice
The steel is hot-dip galvanised and then powder-coated, with a wide range of colours available. Confirm the choice at order stage: coating is a factory process applied before delivery, and the galvanising underneath means a scratched coat is a cosmetic matter rather than a corrosion risk.
Installation and free space
Heavy plant access is required for installation and foundations run to 1.0 m depth. The falling space and free space around the equipment are set by EN 1176-1 and are shown on the siting drawing; the performance of the surface that sits inside that area is a separate matter, governed by EN 1177.
Surfacing
The free height of fall is 3.0 m, so the impact area requires an impact-attenuating surface certified to EN 1177 for a critical fall height of at least 3.0 m across the 20.9 x 12.7 m safety area. The equipment itself is certified to PN EN 1176-1:2017-12 by an independent certification body.
Technical specification
| Reference / SKU | LIF-KZ43-1143 |
|---|---|
| Dimensions (L x W x H) | 17.2 x 9.1 x 4.4 m |
| Age range | 5 to 14 years |
| Free height of fall | 3.0 m |
| Safety area | 20.9 x 12.7 m minimum |
| Foundation depth | 1.0 m |
| Frame | Hot-dip galvanised steel |
| Finish | Powder-coated over galvanising, wide colour range |
| Standard | PN EN 1176-1:2017-12, independently certified |
| Price | On request — project quotation within 24 business hours |
Frequently asked questions
Is a balance structure suitable for children with limited coordination?
It is the reason to install one. Rope balance elements are self-grading: a child can hold on with both hands and take small steps, or cross unaided, on the same equipment. The declared range is 5 to 14 years.
Why does a 4.4 m structure need 1.0 m foundations?
Tensioned rope elements impose horizontal loads on the posts that are independent of height. Foundation depth reflects those loads.
What does EN 1176-1 govern here, and what does EN 1177?
EN 1176-1 sets the safety requirements for the equipment itself, including the free space and falling space around it. EN 1177 sets the test method and performance for the impact-attenuating surface within that area. They are two separate items in a specification.
Send us the plot dimensions, colour requirements and surfacing intentions, and we will return a costed proposal with a scaled siting drawing within 24 business hours.
