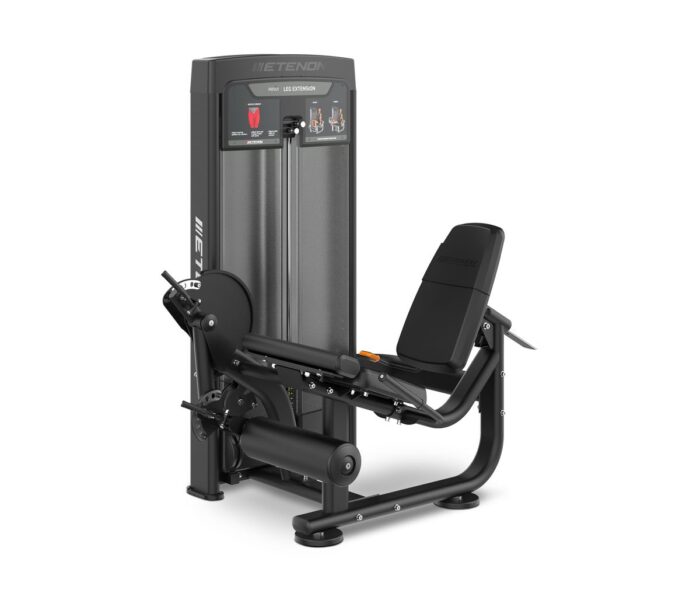

Etenon R8501 Leg Extension, Quadriceps Isolation with Lockable Range of Movement

The Etenon R8501 leg extension isolates all four heads of the quadriceps and offers three independent adjustments: roller position, backrest angle and range of movement stop. That last one is the reason the machine appears in rehabilitation specifications as often as in club ones. Being able to lock the range means a protocol can prescribe a defined arc of knee extension and the machine will enforce it, session after session, without relying on the patient to judge it.

The guided path loads the rectus femoris, the vastus medialis, the vastus lateralis and the vastus intermedius through a single controlled movement, and the pivoting roller adapts to the shape of the shin so the contact point is right for each user. Five roller positions and four backrest angles cover the range of leg lengths and body sizes a club actually sees, and each parameter can be locked for a specific protocol.

Load is selected by pin on a 100 kg column, which keeps transitions between users to a few seconds. Construction is the R8 commercial specification: welded steel frame with epoxy powder coating, sealed bearings, dual density perspiration resistant synthetic leather upholstery, dimensioned for 10 to 14 hours of daily use. The machine weighs around 180 kg and is declared compliant with EN ISO 20957.

Technical specification

The quadriceps and hamstring pair

A leg extension installed on its own trains one side of the thigh and leaves the other untouched, which is precisely the imbalance associated with knee and hamstring injury. Paired with the R8502 lying leg curl it forms the quadriceps to hamstring group that underpins injury prevention programming, and the two machines are normally installed side by side so a member completes both without moving across the floor. Allow clear space in front of the seat for the lower legs to extend fully and access on at least one side for entry. The lockable range stop makes the machine useful to physiotherapists sharing a facility with a club, which is worth considering when the equipment list is drawn up. We position the lower body zone from your floor plan free of charge before quoting.

Frequently asked questions

Why does the range of movement stop matter?

After knee surgery, protocols often restrict the permitted arc of extension. A lockable stop enforces that limit mechanically rather than relying on the user, which is why the feature is specified in clinical settings.

How many adjustments are there?

Three: five roller positions, four backrest angles and the adjustable range stop. Together they cover the range of body sizes in a mixed membership without compromise.

Should I install the leg extension and the leg curl together?

Ideally yes. Training the quadriceps without the hamstrings creates the strength ratio associated with injury, and the two machines are designed to be used as a pair.
