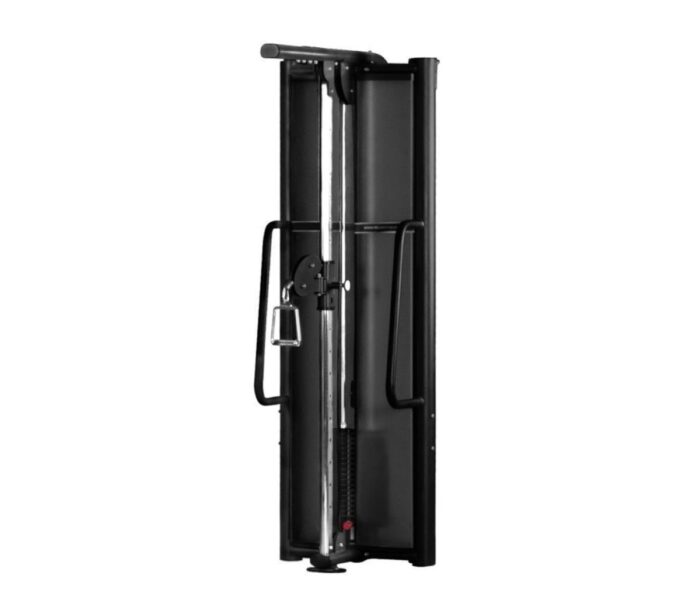

Etenon PC1001B functional trainer, height adjustable swivel pulley

Description

The Etenon PC1001B is a compact functional trainer built around a single swivel pulley that slides over the full height of a vertical guide bar. One station and one weight stack cover upper body pulling and pressing, core rotation and standing cable work for the lower body. Its 1.09 m2 footprint suits hotel fitness rooms, physiotherapy practices, corporate wellness spaces and personal training studios of roughly 15 to 80 m2. Light In Fitness distributes the PC10 range in France from its Tours workshop.

Technical specification

Professional use, footprint and maintenance

The PC1001B carries the EN 957 class S rating, the level written for continuous professional duty, so it is dimensioned for club opening hours rather than occasional domestic use. The oval 3 mm steel tube frame and the hard chromed guide rods are the same construction standard used across the larger PC10 stations, which means the compact format is a dimensional choice rather than a downgrade of the mechanics.

Because the pulley is a single travelling carriage, the machine is designed for one user at a time. Plan the surrounding area accordingly: the 115 x 95 cm base needs a clear working zone in front of the pulley for standing rows, presses and rotational work, plus access to the selector at the side. Overall height is 230 cm, so allow a minimum clear ceiling height of 250 cm to use high pulley movements such as lat pulldown and triceps extension without the handle reaching the ceiling.

Servicing is limited to routine checks. Inspect the steel cable and pulley wheels for wear, verify that the magnetic selector pin seats fully, wipe the synthetic leather upholstery with a neutral cleaner and keep the guide rods free of dust. The stack guard reduces the risk of hands reaching moving plates, which matters in unsupervised hotel and residential fitness rooms.

Finishes and installation options

Colours, finishes and upholstery embroidery such as a site logo or brand mark are available on request at the quotation stage. Light In Fitness also offers an installation service covering the site survey, a 3D layout plan, assembly on site and initial adjustment, and provides after sales support from Tours. Delivery to mainland France is quoted with specialist transport; export destinations are priced per project.

Frequently asked questions

How much floor space does the PC1001B need?

The machine measures 115 x 95 cm at the base, which is 1.09 m2. That figure is the equipment footprint only, so add a user working zone in front of the pulley and a circulation corridor when you draw your layout plan.

How does the PC1001B differ from the PC1001A?

The PC1001A offers four fixed pulley positions on one tower and can serve three to four athletes at once, on a 6.73 m2 footprint. The PC1001B concentrates those functions on a single pulley that adjusts over the whole height of the vertical bar, so you lose simultaneous multi user access and gain compactness and a wider choice of pulling angles.

Is the machine suitable for rehabilitation work?

Yes. The travelling pulley allows the line of pull to be set precisely for shoulder and upper limb protocols, and the magnetic selector makes small load changes quick between patients, which is why the model is specified for physiotherapy practices and adapted physical activity rooms.

Request a quotation for the Etenon PC1001B, or browse the full range of strength training machines available from Light In Fitness.
