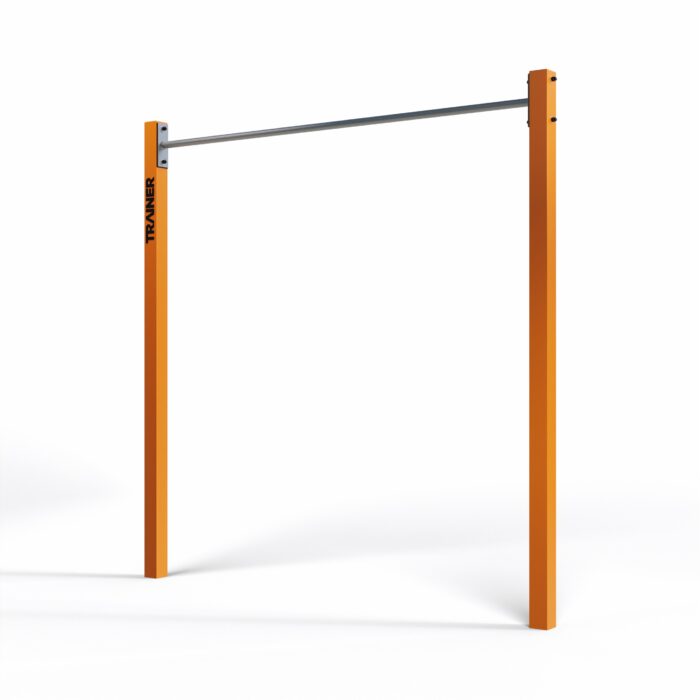

TRAINER SW02B Horizontal Bar 2000 - Long-Span Pull-Up Bar

The TRAINER SW02B horizontal bar 2000 is a long-span outdoor pull-up bar measuring 216 x 8 x 202 cm and weighing 50 kg, with a required safety zone of 410 x 616 cm. Difficulty is rated medium, for users from 140 cm and up to 150 kg. Certified to EN 16630:2015-06 and tested by TUV Rheinland, it is supplied by Light In Fitness at 1,020 EUR excluding VAT.

Span is the point

At 216 cm the bar is long enough for two people to hang side by side, or for a coach to run a group through timed sets without queueing. That is a different proposition from a single-station bar: on a school site, a military training ground or a club calisthenics area, throughput per apparatus decides whether a session works, and a long bar doubles it for a small increase in cost. It also changes how the apparatus is used socially. A wide bar invites people to train together, and self-organised group training is what keeps a public street workout area busy year after year.

• Pull-ups, hangs and suspension exercises
• Works arms, back, chest, waist, abdominals and legs
• 216 cm span allowing simultaneous or group use
• Modular: combines with other TRAINER street workout apparatus
• Difficulty rated medium, minimum user height 140 cm

Long span, larger safety zone

The zone required is 410 x 616 cm, appreciably wider than for the standard 140 cm bar, and that difference decides feasibility on constrained sites more often than the bar itself does. Check the zone against the plan before choosing between the two lengths: a courtyard that takes the short bar comfortably may not take the long one without pushing another apparatus out of the layout. Impact-attenuating surfacing should be assumed across the whole zone, since the free height of fall on a suspension apparatus is set by the user’s grip height.

Modularity

The SW02B uses the standard connection points of the TRAINER street workout system and can be installed alone or as one bay of a larger rig with parallel bars, wall bars, rope supports and traverse elements. Ranges must not be mixed within one assembly, since EN 16630 certification applies to the structure as installed. Standard colours are yellow (RAL 1018/7004), graphite (RAL 7016/9006), orange (RAL 2000/9006) and lime (RAL 6018/9006).

Specification

Frequently asked questions

How many people can use it at once?

Two adults can hang comfortably side by side on a 216 cm span, and in coached group use the bar cycles a class far faster than a single-position bar. The safety zone assumes simultaneous use, which is part of why it is wider than for the shorter reference.

Is the shorter bar a better choice on a small site?

Frequently, yes. The 140 cm version needs a 410 x 540 cm zone against 410 x 616 cm here, and on a tight footprint that difference can be what allows a second apparatus to fit. Where space is not the binding constraint, the long bar is better value per user.

Can grips or handles be added later?

Accessories must come from the same certified range and be fitted in accordance with the manufacturer’s instructions, because the EN 16630 certification covers the structure as installed. Aftermarket additions such as rings or straps hung by users are outside the certification and should be removed at inspection.
